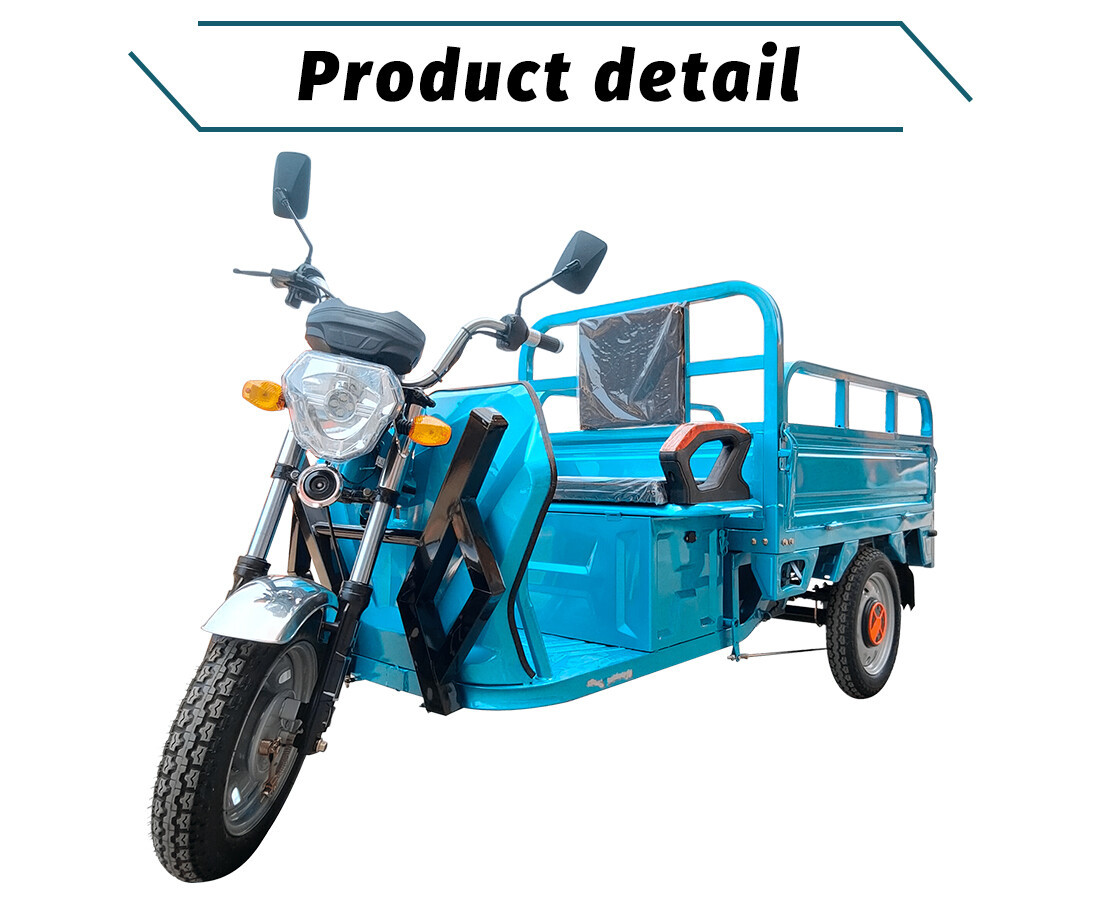

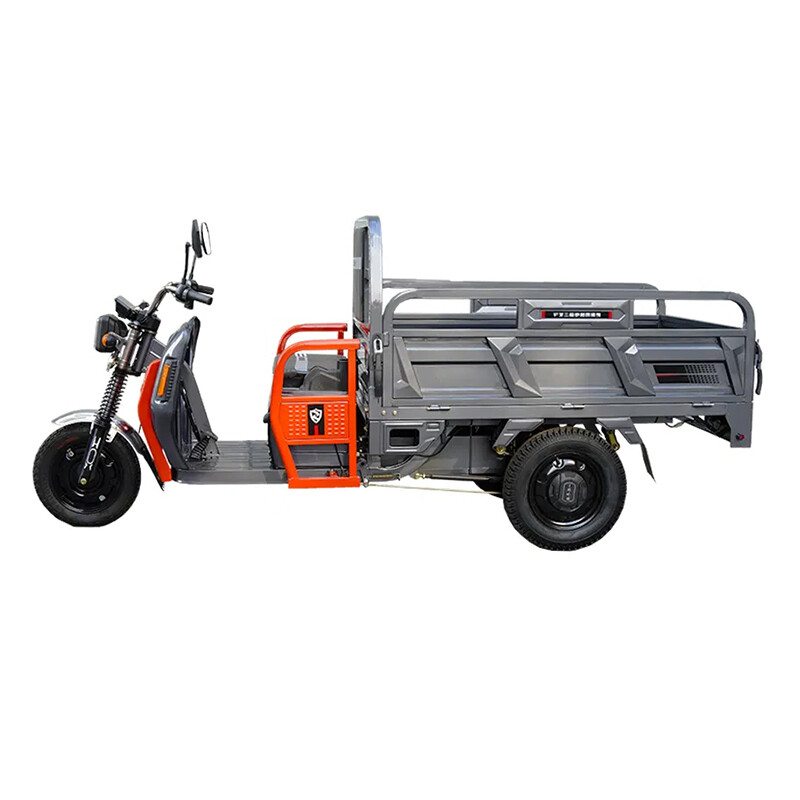

Electric Tricycle For Agricultural Use With Dumping Function

The company has sufficient inventory and can be picked up at any time.

Product Description

Short Specification

Overall Dim (mm)	2740×1030×1240
Cargo box size(mm)	1300×950×280
Weight(Without battery/kg)	185
Rated Loading Capacity(kg)	300kg
Range/Charge (km)	45
Max Speed(km/h)	25
Motor	48V650W Differential Motor with hand gear shifting
Controller	12 tubes
Front fork	Φ37
Front Wheel	3.5-12
Rear Wheel	3.5-12
Grade ability(%)	20% empty load, 12% full load
Brake	Front drum,rear drum
Charging time	6-8 h
Batteries	48V20Ah

Characteristics:

1.Electric 3 wheels heavy loading cargo tricycle.

2.Lifting cargo box, box size 1300*950*280mm

3.loading capacity around 400kg with 1000W motor. max motor could be 1200w for this model

4.Max speed could be around 35-37km/h.

5.Equiped with LED headlight,LCD display ,3 level speed and gearshift,suitable for farmland

6.If SKD steel frame package,could load 44pcs/40HQ container,55-60pcs CKD/ 40HQcontainer.
