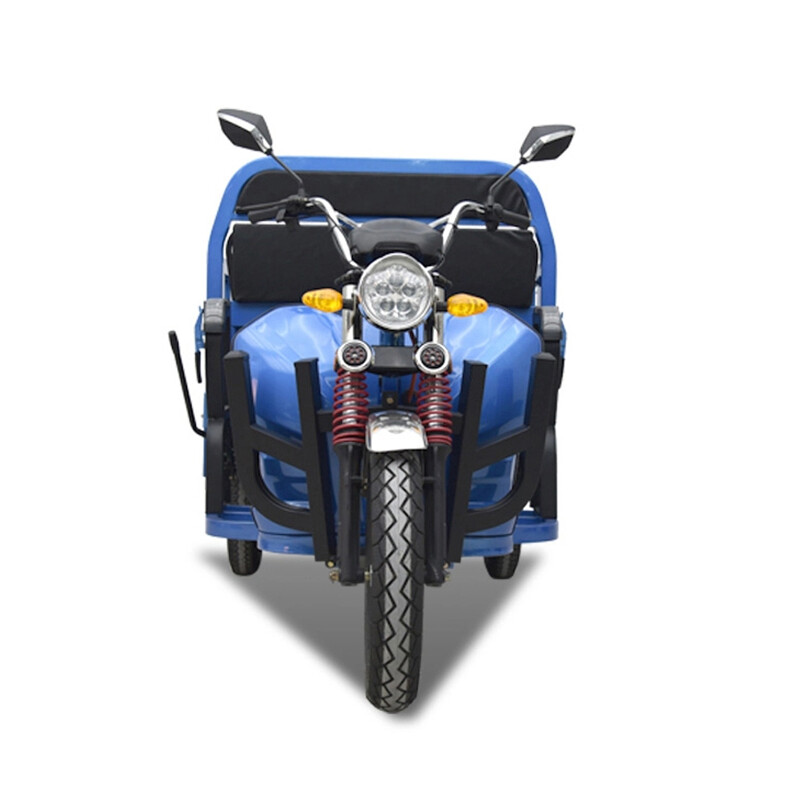

60v45ah/100ah Cargo Electic Trike

The company has sufficient inventory and can be picked up at any time.

Product Description

Specification

Optional colors	red, blue, green, yellow, grey, silver
L×W×H(mm)	3070×1180×1412
Cargo Box size(mm)	1500×1100×340
Wheel base(mm)	2066
Wheel track(mm)	952
Minumum ground clearanc(mm)	≥150
Minimum turning radius(m)	≤4
Curb weight(kg)	265
Rated load (kg)	400
Max speed(km/h)	35
Grade ability(%)	≤20
Battery	60V45AH-100AH
Motor, Controller（w）	60V1200W
Range per charging（km）	50-110
Charging time（h）	6～8h
Front shock absorber	Φ43 Drum shock absorber
Rear shock absorber	50×120 Seven pieces leaf spring
Front/Rear tyre	110/90-16/4.00-12
Rim type	Front/Rear:Steel
Front/Rear brake type	Front/Rear:Drum
Parking brake	Hand Brake
Rear axle structure	Integrated Rear Axle
Vehicle lamps	Ordinary lamps （48V)
CKD/SKD	32 Units/40HQ 15 Units/20GP
CKD/SKD with shed	28 Units/40HQ 12 Units/20G
SKD(Steel Frame)	32 Units/40HQ 12 Units/20GP
SKD with shed(Steel Frame)	28 Units/40HQ 10 Units/20GP
