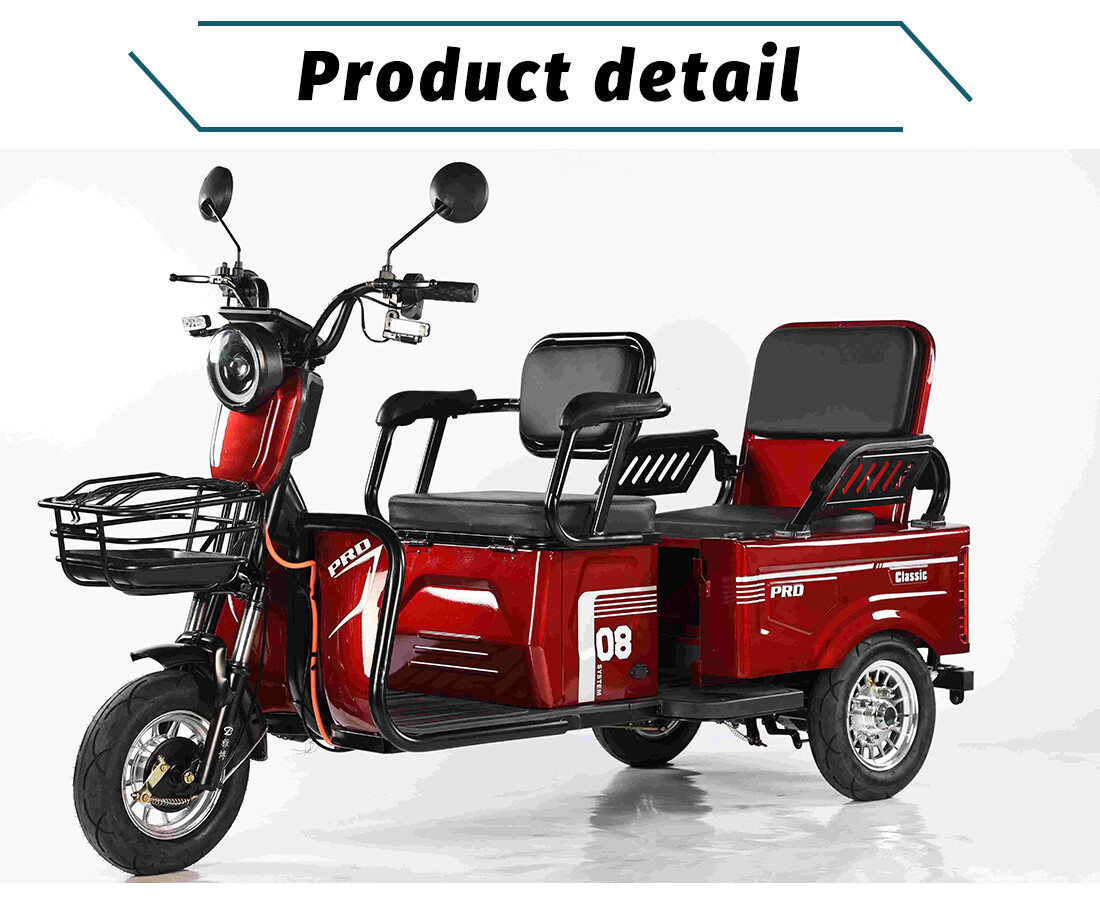

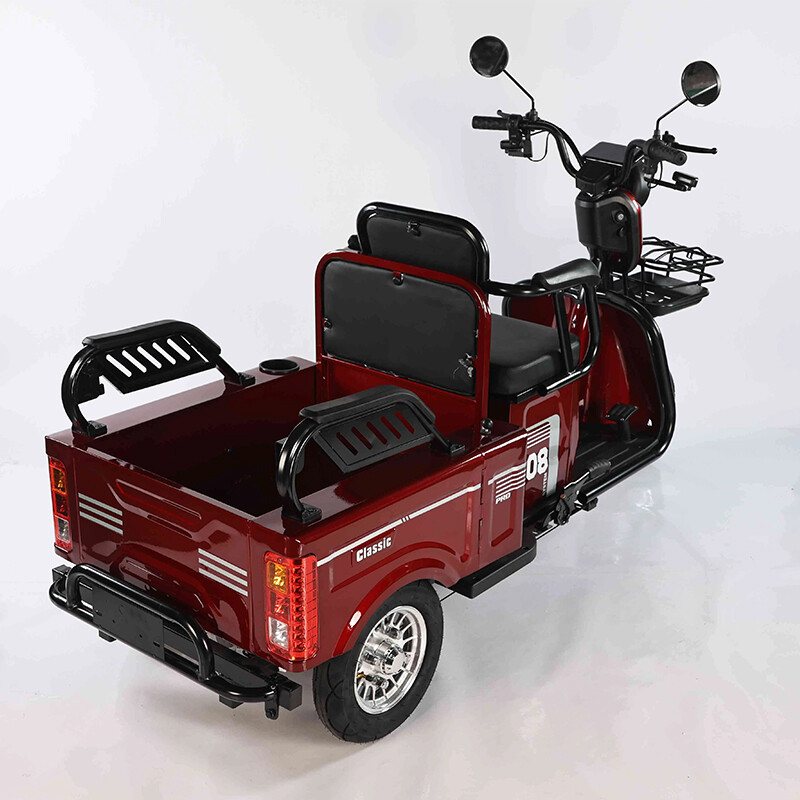

Electric Tricycle for Cargo And Passenger

The company has sufficient inventory and can be picked up at any time.

Product Description

Specification

Dimensions (mm)	2440×986×1230
Cargo Box Size (mm)	930×950×330
Wheelbase (mm)	1745
Wheel Track (mm)	835
Backrest form	single
Curb weight(kg)	150
Minumum ground clearance（mm）	≥110
Minimum turning radius（m）	≤4
Rated Loading capacity (kg)	200
Max speed（km/h）	25/35
Maximum Climbing Slope (%)	≤20
Battery	72V32AH
Motor, controller (w)	72V1000W
Economic speed range (km)	25-60-70km 35-50-60 km
Charging time (h)	6-8h
Front shock absorption	Φ33 hydraulic drum brake shock absorber
Front/rear tire specifications	3.0-12
Rim type	Front / rear iron wheels
Front/rear brake type	Front /rear drum brake
Parking brake type	Handbrake
