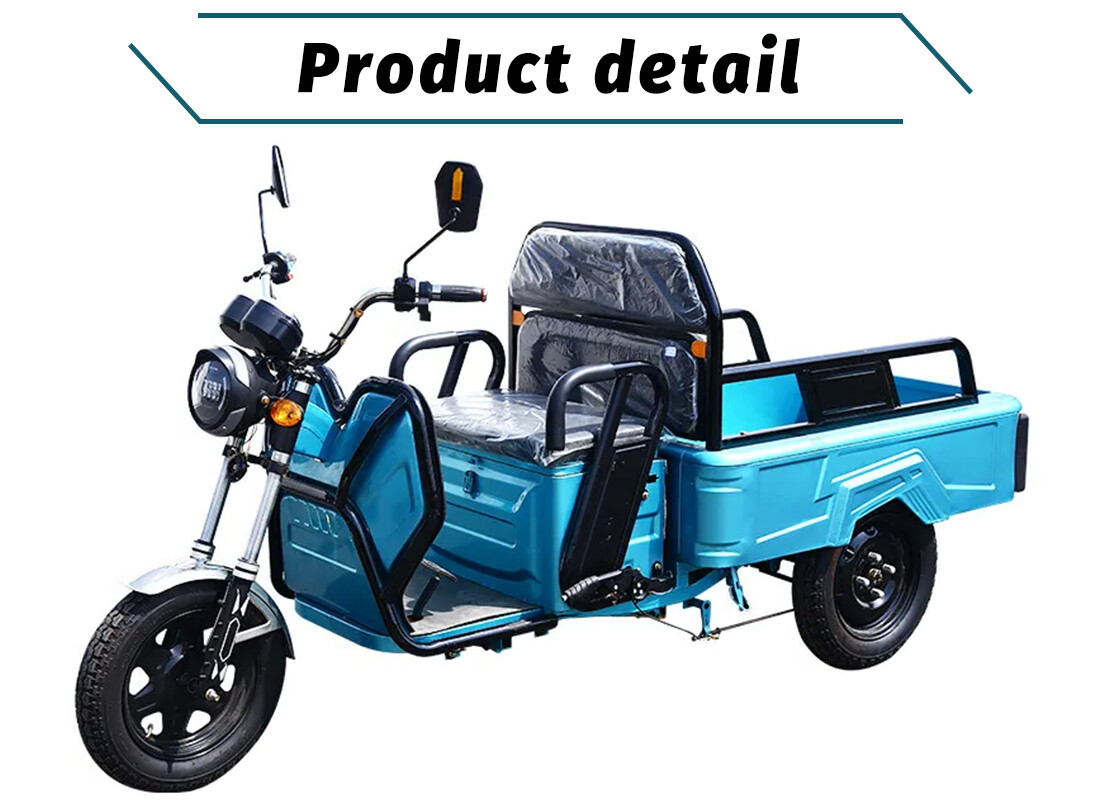

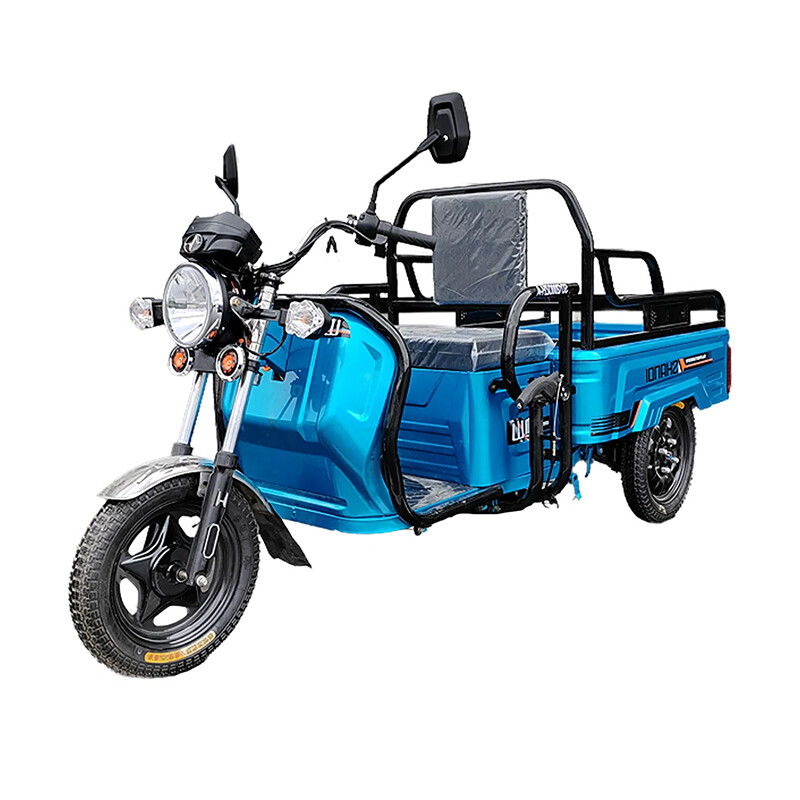

Small Electric Cargo Tricycle

The company has sufficient inventory and can be picked up at any time.

Product Description

Specification

Dimensions (mm)	2500×874×1159
Cargo Box Size (mm)	1100×815×255
Wheelbase (mm)	1696
Wheel Track (mm)	730
Backrest form	Double
Curb weight(kg)	120
Minumum ground clearance（mm）	≥110
Minimum turning radius（m）	≤4
Rated Loading capacity (kg)	260
Max speed（km/h）	30
Maximum Climbing Slope (%)	≤20
Battery	60V32AH
Motor, controller (w)	60V800W
Economic speed range (km)	40-45
Charging time (h)	6-8h
Front shock absorption	Φ33 hydraulic drum brake shock absorber
Front/rear tire specifications	3.0-12
Rim type	Front / rear iron wheels
Front/rear brake type	Front /rear drum brakes
Parking brake type	Handbrake
Rear axle structure	Split gear shift rear axle
