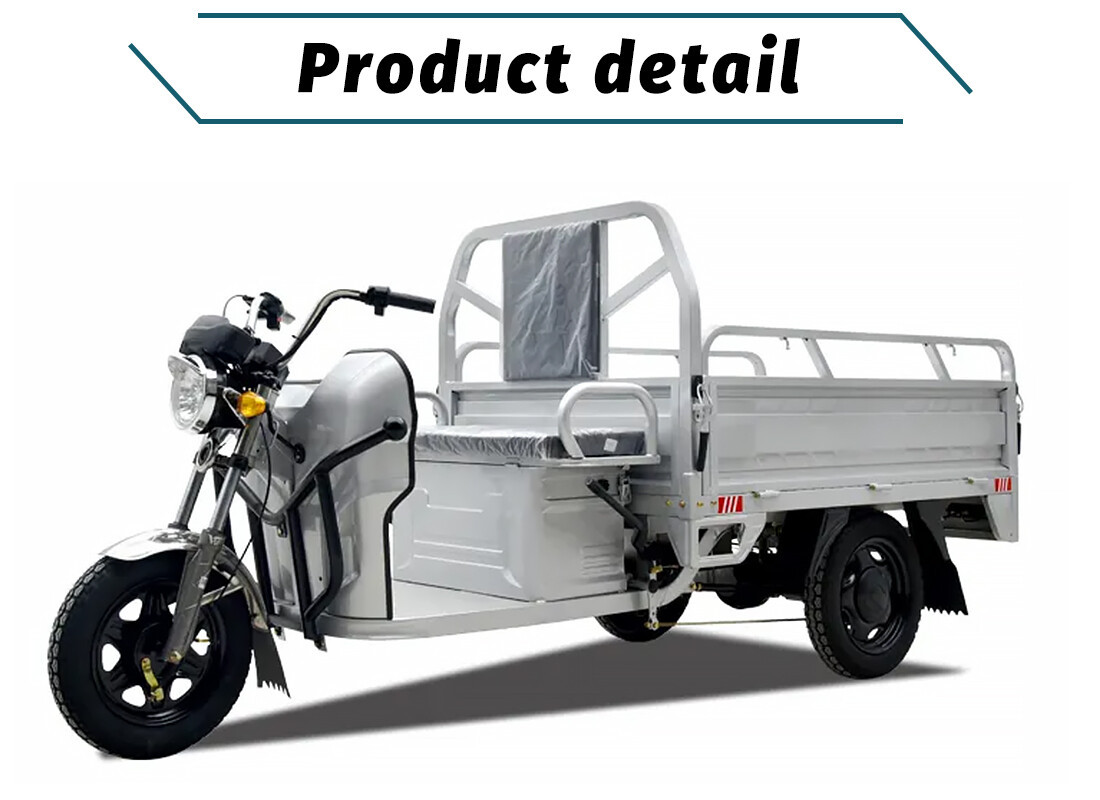

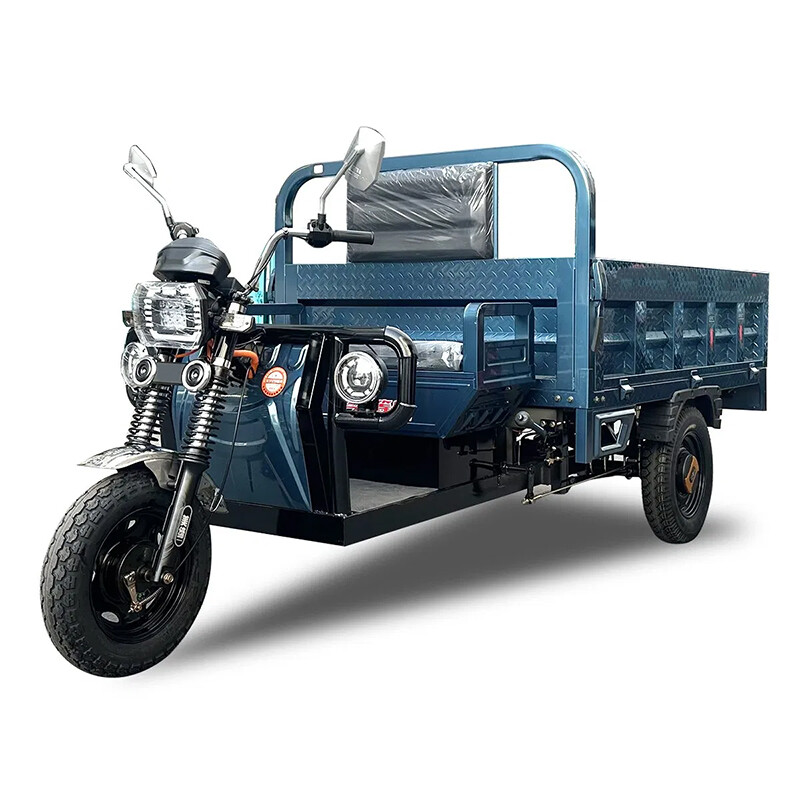

Cheap Price Drum Brake Cargo Electric Trike

The company has sufficient inventory and can be picked up at any time.

Product Description

Specification

Optional colors	red, blue, green, yellow, grey, silver
L×W×H(mm)	2900×1130×1325
Cargo Box size(mm)	1500×1050×300
Wheel base(mm)	1980
Wheel track(mm)	870
Minumum ground clearanc(mm)	≥150
Minimum turning radius(m)	≤4
Curb weight(kg)	200
Rated load (kg)	200
Max speed(km/h)	30
Grade ability(%)	≤15
Battery	60V45AH-58AH
Motor, Controller（w）	60V1000W
Range per charging（km）	50-70
Charging time（h）	6～8h
Front shock absorber	φ33 Drum shock absorber
Rear shock absorber	50×85 four pieces leaf sprig
Front/Rear tyre	3.5-12/3.75-12
Rim type	steel
Front/Rear brake type	Front/Rear:Drum
Parking brake	Hand Brake
Rear axle structure	Integrated Rear Axle
Vehicle lamps	Normal light (48V)
CKD	68 Units/40HQ 56 Units（With shed）/40HQ
SKD	50 Units/40HQ 40 Units（With shed）/40HQ
