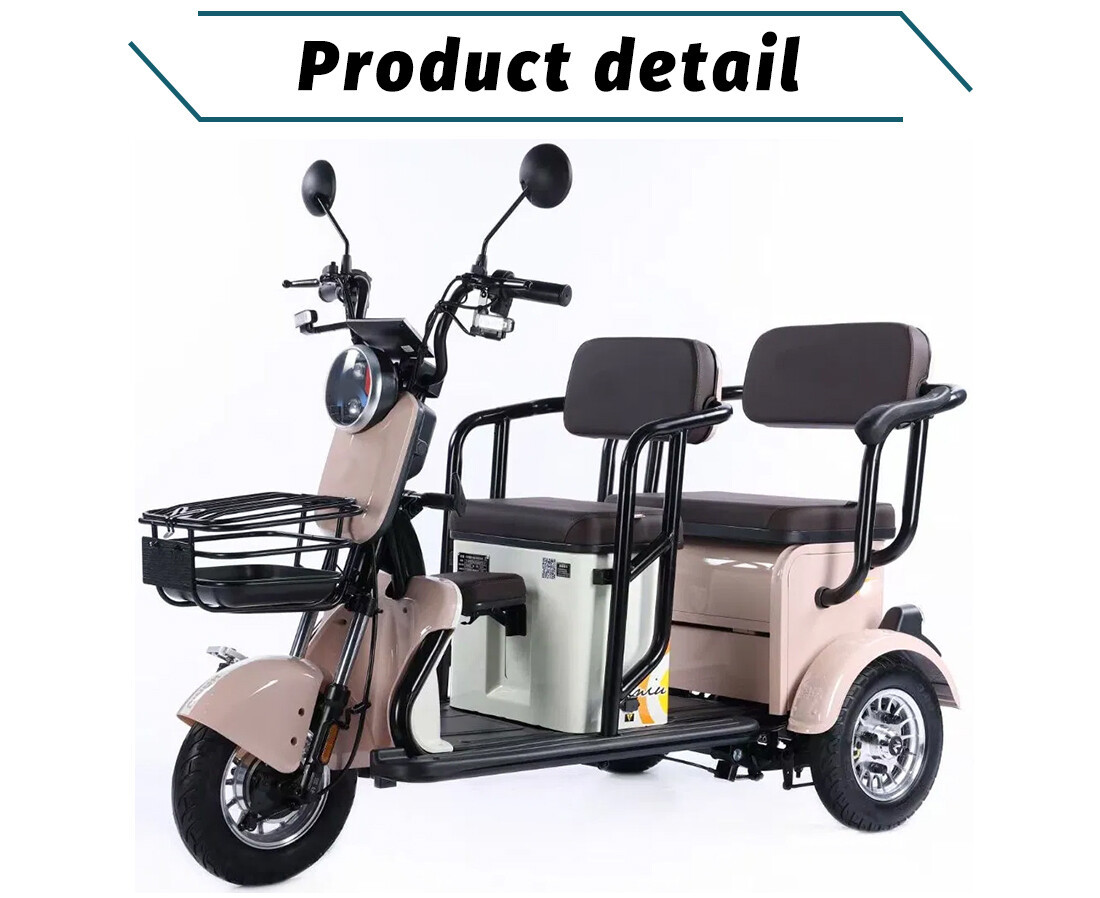

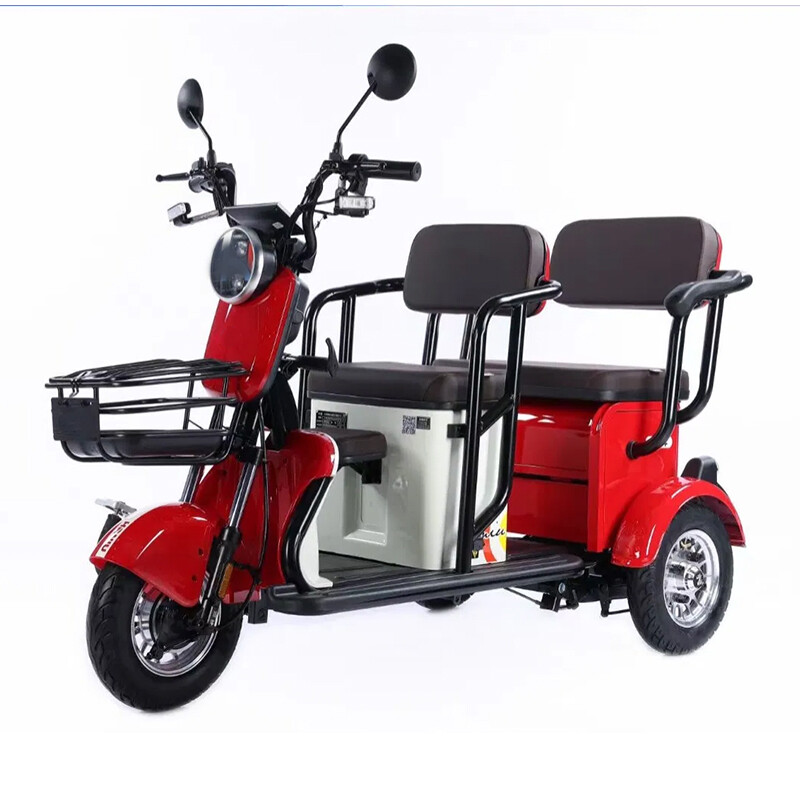

2passenger Electric Leisure Tricycle

The company has sufficient inventory and can be picked up at any time.

Product Description

Specification

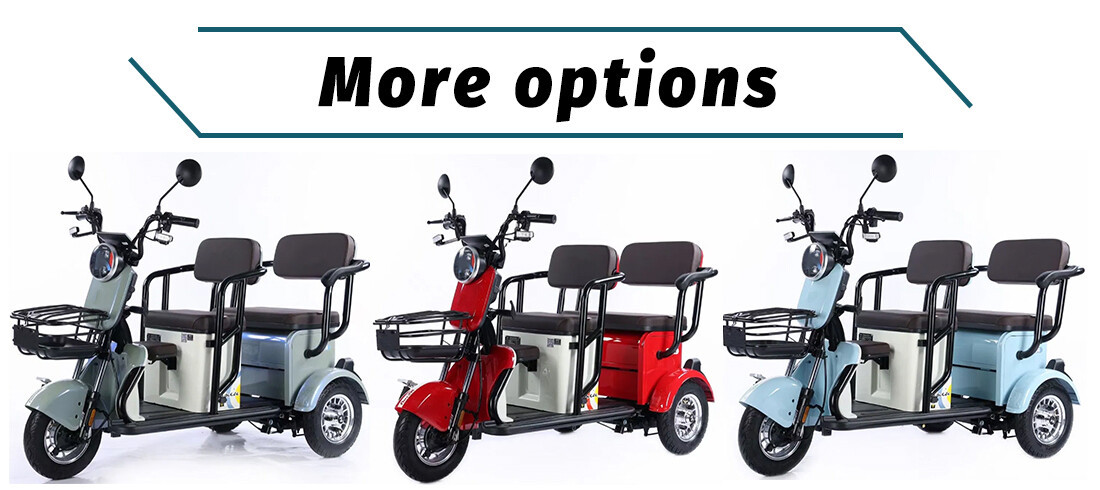

Optional colors	Red Blue Brown Yellow Grey	Red Blue Brown Yellow Grey
L×W×H(mm)	2130×860×1050	2130×860×1050
Wheel base(mm)	1480	1480
Wheel track(mm)	750	750
Minumum ground clearance（mm）	≥100	≥100
Front turning angle	2.1	2.1
Curb weight(kg)	110	110
Max speed（km/h）	8km/h	8km/h
Max slope of climb（%）	≤15	≤15
Battery	72V20AH	60V20AH/32AH
Motor, Electric power control（w）	72V1000W	60V650W
Driving mileage at efficient speed（km）	45-55	45-55
Charging time（h）	6～8h	6～8h
loading capacity	1driver+1passenger	1driver+1passenger
Front shock absorber	φ31Hydraulic shock absorption	φ31Hydraulic shock absorption
Rear shock absorber	Spring ahock absorber	Spring ahock absorber
Front/Rear tyre	Front 3.00-10 Rear 3.00-10	Front 3.00-10 Rear 3.00-10
Rim type	Aluminum wheel	Iron wheel
Front/Rear brake type	Front disc brake Rear drum brake	Front/ Rear drum brake
Paking brake	Handbrake	Handbrake
Rear axle structure	Split Rear axle	Split Rear axle
Seat	Foam seat	Foam seat
Vehicle lamps	12V	12V

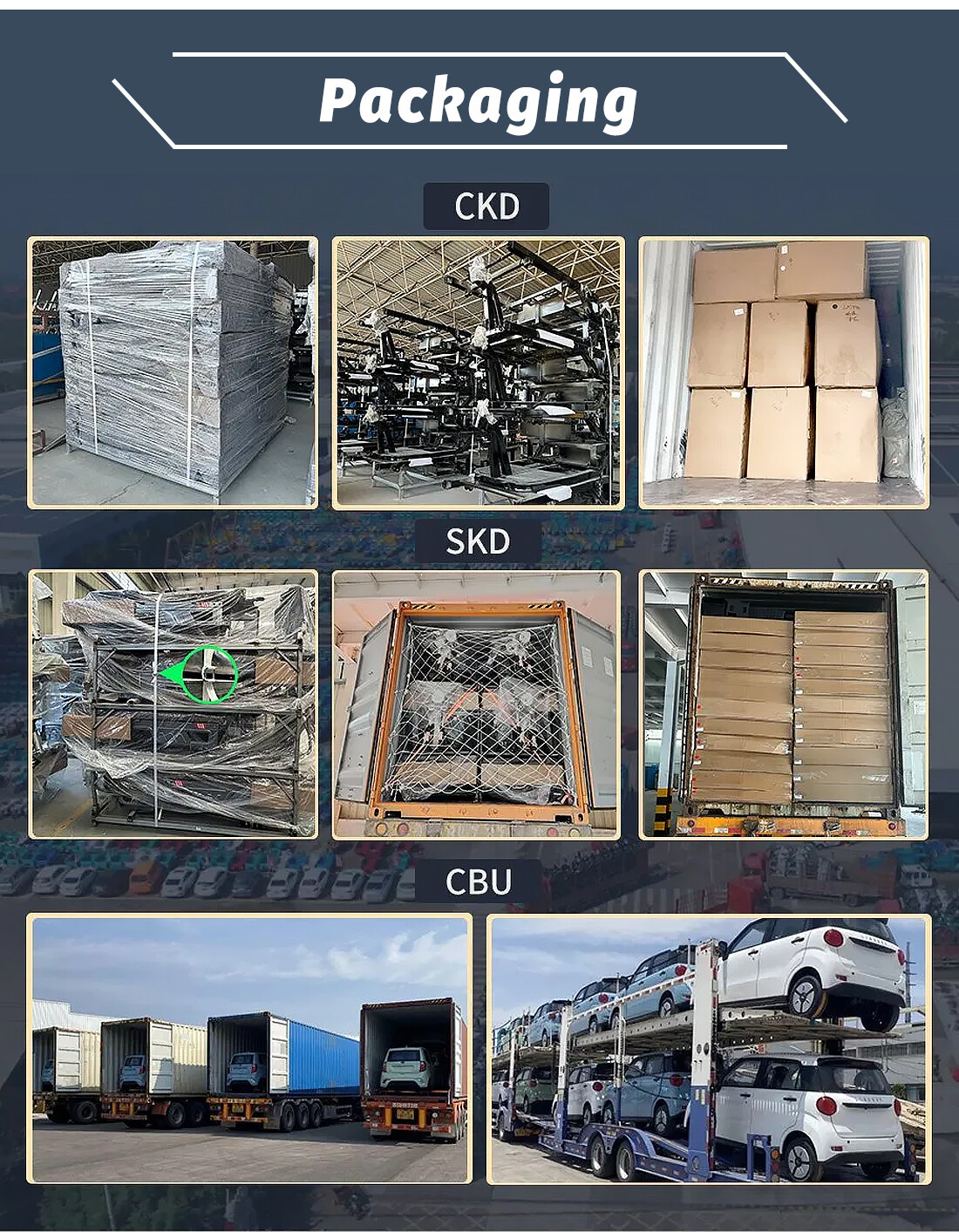

SKD	60Units/40HQ 21Units/20GP	60Units/40HQ 21Units/20GP
