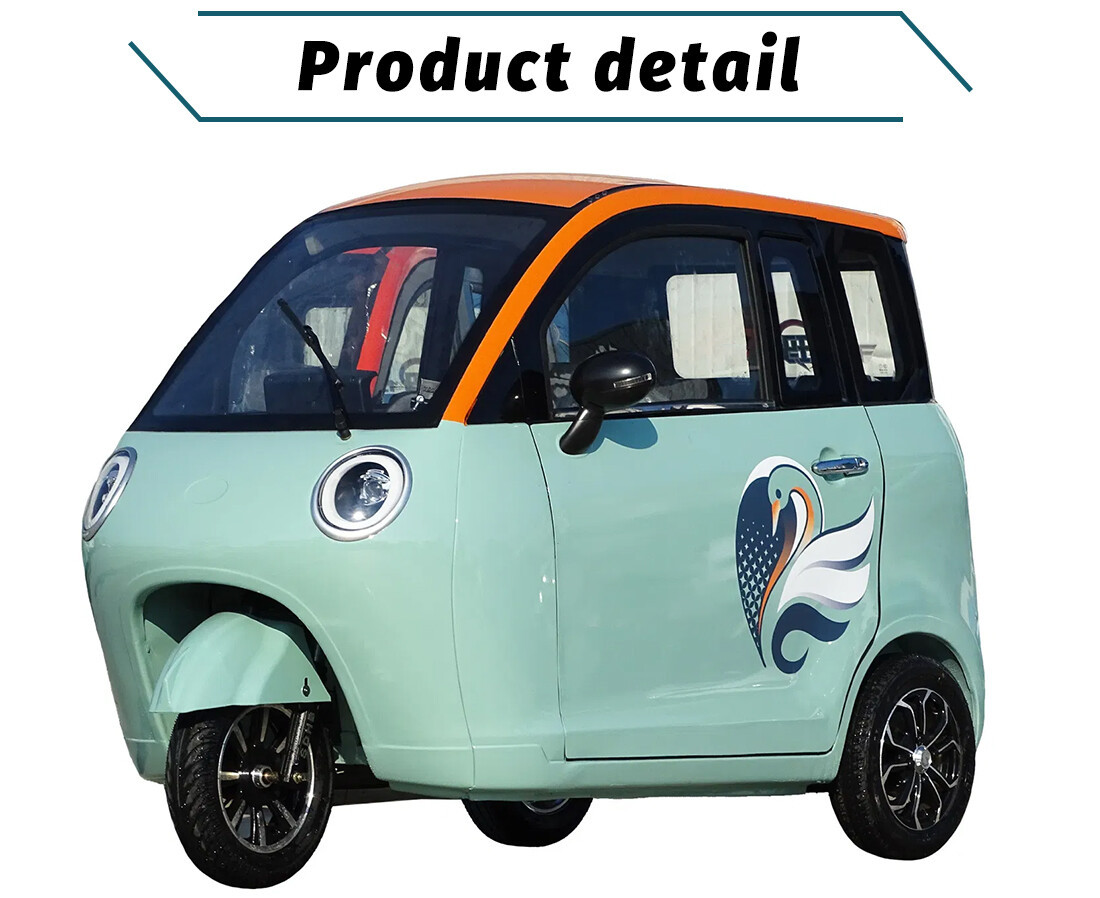

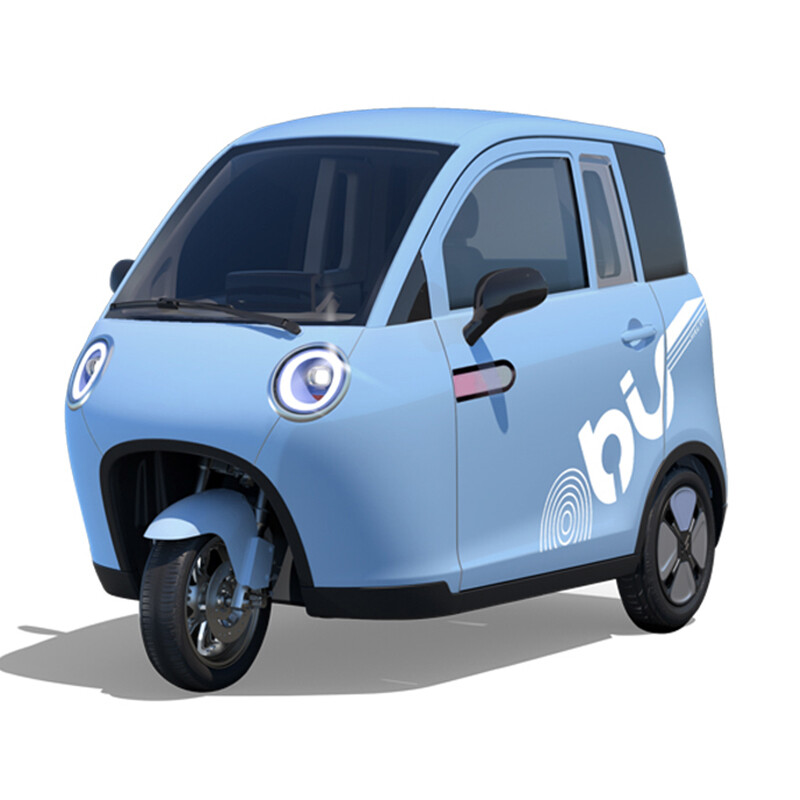

Stylish Cute Design Passenger Electric Tricycle

The company has sufficient inventory and can be picked up at any time.

Product Description

Specification

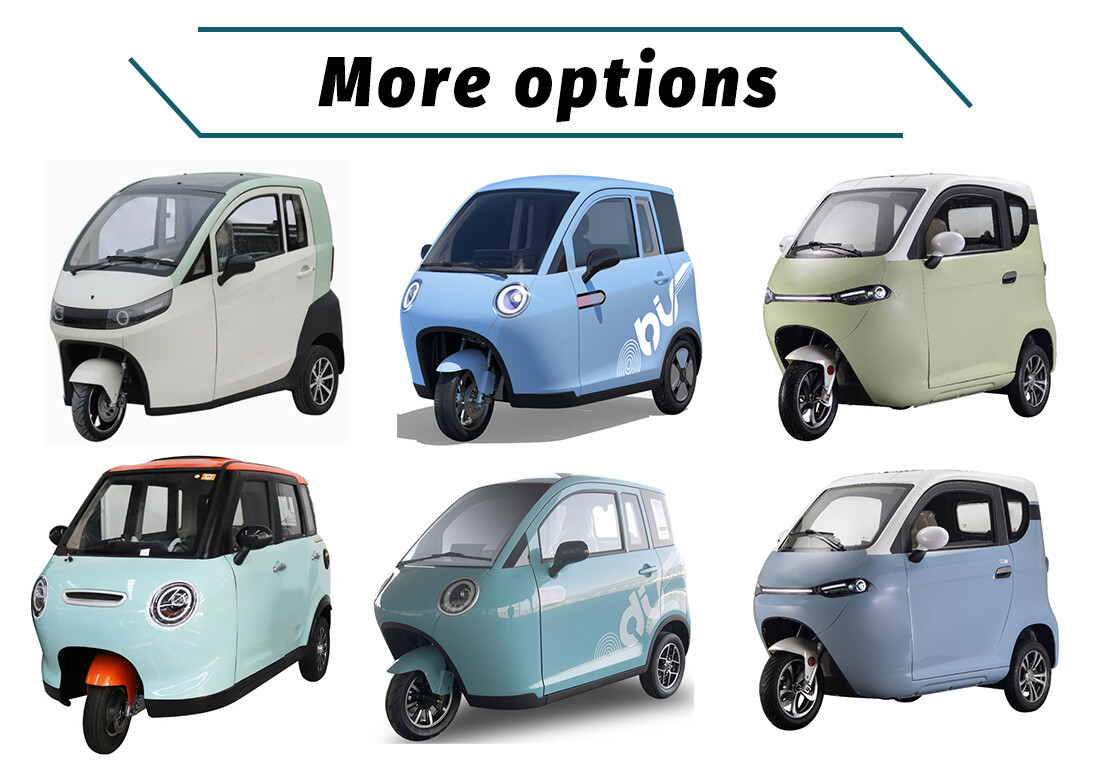

Optional colors	White、Red、Pink、Blue、Green、Purple
L×W×H(mm)	2435×1210×1590
Wheelbase(mm)	1730
Front/rear wheel track(mm)	1040
Min. Ground Clearance(full load)(mm)	≥130
Curb weight(kg)	270
Person capacity(person)	3
Total mass(kg)	585
Maximum speed(km/h)	≥37
Continuation mileage at 30km/h constant speed(km)	120
Maximum gradeability(%)	≥15
Driving form	Rear drive
Motor type	Permanent magnet synchronization
Rated power(w)	1500
Voltage(V)	60
Battery capacity(Ah)	58-80
Battery type	lead-acid
Recharge Time	6-8
Body structure	2 doors and 3 seats
Front suspension	Hydraulic shock absorption
Rear suspension	Non-independent suspension
Front/rear tyre type	Front 130/70-12/rear 135/70R12
Rim type	Front aluminum /rear steel
Steering gear type	Rack and pinion
Front/rear brake type	Disc/Disc
Parking brake type	Handbrake
Driver's seat adjustment form	Four-way manual adjustment
Front combination lamp	LED
Rear combination lamp	LED
Speaker	2

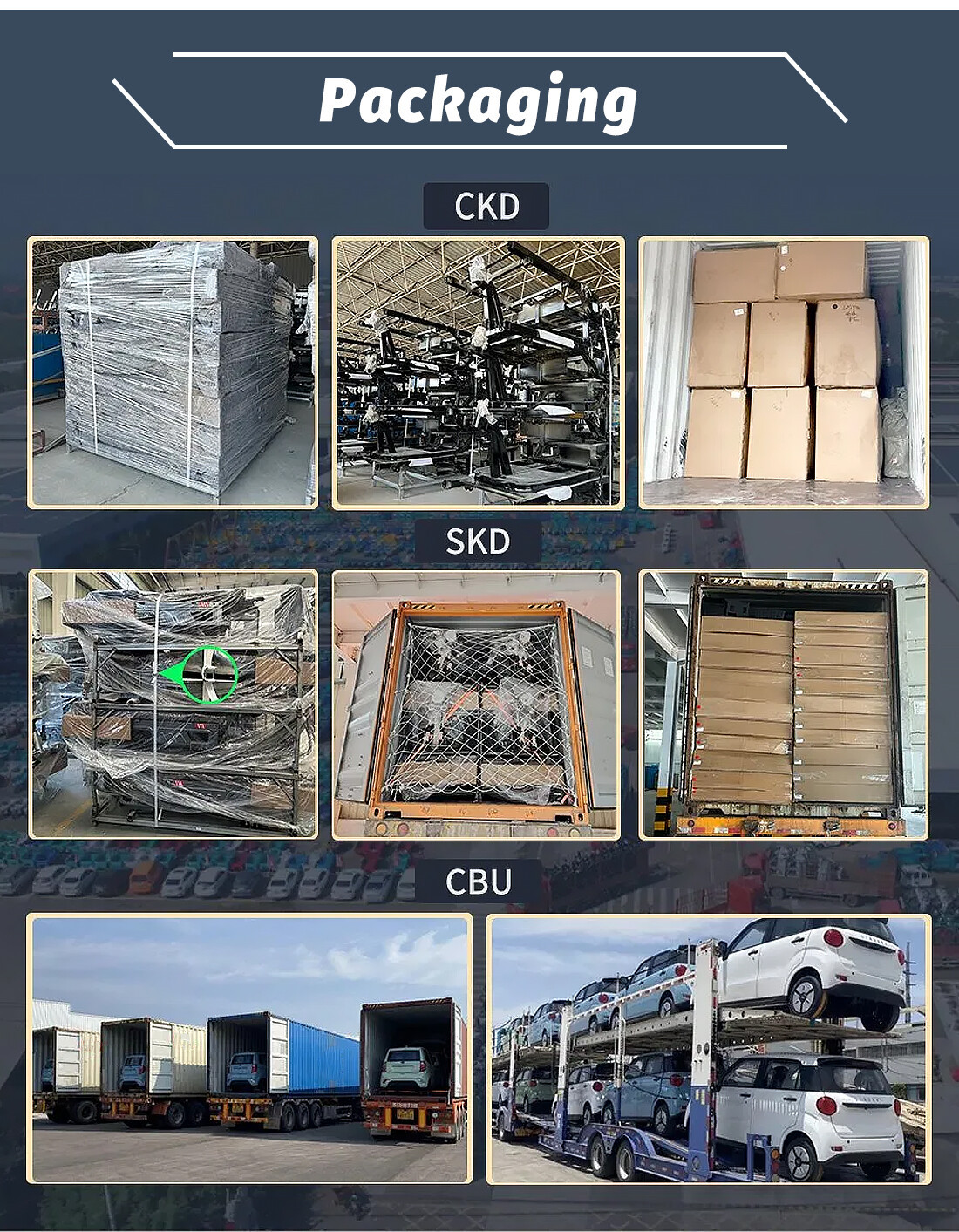

40HQ	9 units
20GP	2 units
